High Speed Inkjet Plotter JD-Ak45 Series
Type:
Plotter
Model:
JD-AK45-185、JD-AK45-205
Intro:
(Jindex model description: because of the export CE certification requirements, the model is the actual print drawing size) JD-AK45 series adopts continuous supply ink cartridge, which greatly reduces the cost of consumables
Contacts:
18923737801(wechat)Click there to chat with me.
Product introduction Return to the list

Functions and Special Features


Jindex AK45 series inkjet printers, with the excellent electromechanical structure in 2010 and the integration of the latest German network transmission technology, have launched the world's first more advanced 3i inkjet printers:

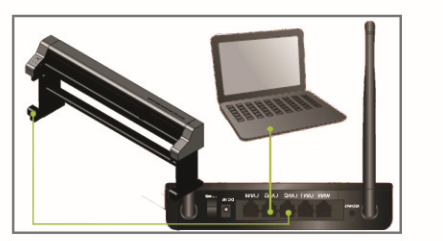

1i. Internet multi-machine networking "cloud printing technology";

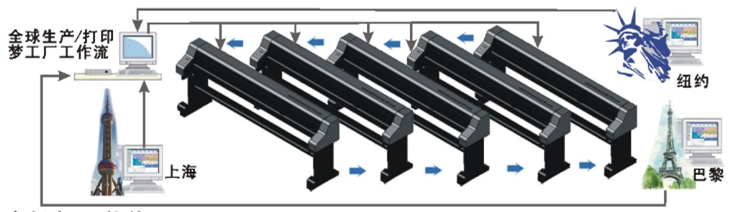

Cloud printing technology: a computer network control up to 50 inkjet machine printing at the same time, HPGLHPGPLTPRN and other files through the local area network or INTERNET free transmission, system free distribution printing, the establishment of your "global printing dream factory" immediately become a reality!


2i. Integrated system

1.The first cloud configuration inkjet printer in the world. After replacing the computer or installing WINDOWS again, the automatic configuration inkjet printer can print normally without 1:1 scale and misalignment of the nozzle.

2. Adopt intelligent paper saving, perfect dynamic control acceleration function, compatible with WIN7,WIN8 and other ink-jet machine incompatible computer operating system.

3. Standard delivery paper motor, bearing 50KG paper roll, paper track and "slide sheet" in the printing platform to prevent paper jam, single, double and four spray free choice, as needed to upgrade the printing capacity.


3i. Intelligent artificial intelligence:

The machine is equipped with powerful artificial intelligence technology, intelligent memory after power failure, and printing on demand after power on, which can coordinate other brands of inkjet machine to print together.


High Speed Inkjet Plotter Jd-Ak45 Series Technical Parameters Standard Table

Technical Parameters/Mode

JD-AK45-185JD-AK45-205

Maximum Drawn Width

185cm205cm
Maximum Feed Width190cm210cm

Maximum Speed & Resolution

90 square meters/hour     300dpi

Continue Drawing After Emergency Stop

In case of sudden power failure, work interruption and other emergencies, when the printing stops, the system will automatically save the printed file, then select the unprinted area of the file, and continue to print after starting up to prevent repeated printing.

Cartridge Type

HP45 Supply ink cartridge

Cartridge Number

2 heads + 1 ink warehouse

Curves Quality

Computer curve automatic optimization technology, to ensure that the curve printing effect mellow smooth, print quality and effect is clear and fine, smooth interface, no sawtoot

Length Guarantee

Continuous printing more than hundreds of meters, the docking is still perfect

Paper Feed Motor

The perfect paper feeding system ensure the continuous and smooth paper feeding in the process of paper printing, which will never lead to the problem of paper not moving, and will never cause the problem of short and long size

Port Selection

Super network port or USB conversion port

Machine Language

HPGL form GerBER,Lectra,Optitex,Investronic,Assyst,VetiGraph,Tuka,Any Chhinese CAD

Power Consumption

<300W;110-260V AC;47-66HZ;(Option:90-120V)

Network Printing

Truly realized a computer control multiple inkjet plotter network printing, with the "night printing mode", to achieve the unmanned printing

Automatic Paging

The output center software can automatically page print according to the width of the printed file and the maximum print width

Gross Weight

135KG150KG

Control Advantages

Using servo motor with a code plate to control the direction of inkjet printing for ensuring accurate alignment.No grating strips and grating sensors to avoid maintenance and related derivative maintenance after the grating is contaminated with dust. and makes the UPS machine more stable and reliable
