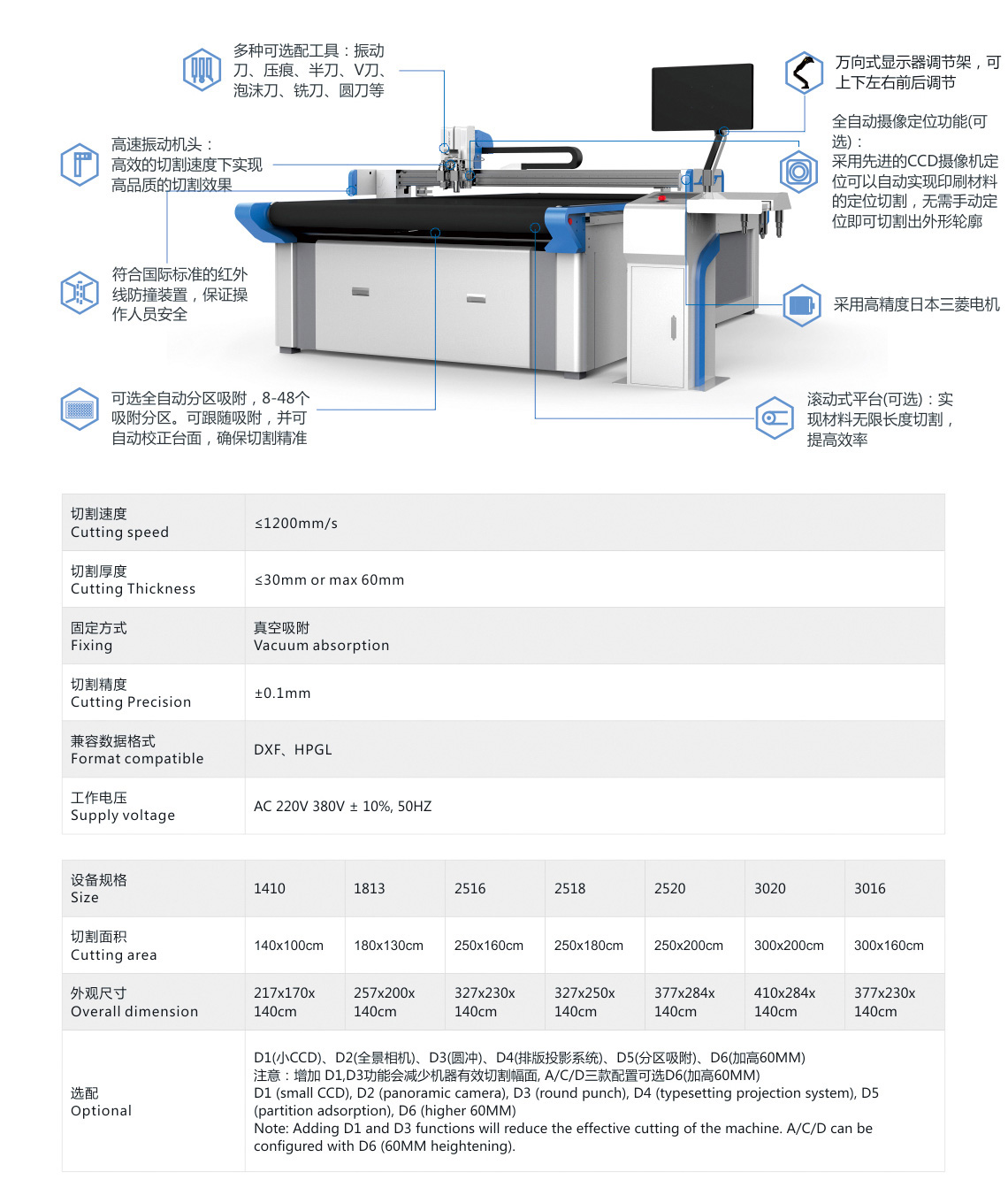

CNC conveyor Oscillating Cutting Machine JD-AS-A series
Type:
Car and boat interior
Model:
JD-AS-1410A、JD-AS-1813A、JD-AS-2516A
Intro:
The transmission system of the cutting machine adopts imported linear guide rail, rack and gear, and the cutting precision can reach zero error from the origin. Mitsubishi servo motor is used for high speed and precision. Equipped with a 43MM thick high-strength aluminum honeycomb table plate with a
Contacts:
18923737801(wechat)Click there to chat with me.
Product introduction Return to the list

避光垫切割机主要是用于汽车内饰行业中的材料切割,如遮阳板、泡沫遮阳挡、涂银布、汽车脚垫、后备箱垫、丝圈脚垫、XPE脚垫、地毯地垫、汽车座套、汽车坐垫、布料等材料,采用震动刀、拖刀形式切割,带有自动送料功能,针对卷材自动送料切割,不需人守,达到自动化程度,代替人工切割,效率高,精度高,速度快,切割尺寸,误差低,同时避光切割机、遮阳板切割机有尺寸可选,可以根据材料自身的大小而选择不同的设备大小。

The light-proof pad cutting machine is mainly used for cutting  automotive interior industry material, such as sun visor, foam sun block, silver cloth, car mat, trunk mat, wire mat, XPE mat, carpet mat , car seat cover, car seat cushion, cloth and other materials, using oscillating knife, drag knife cutting, with automatic feeding function(for roll material),no need to guard, to achieve automation, instead of manual cutting, high efficiency, High precision, high speed, cutting size, low error, while the light-proof cutting machine and sun visor cutting machine are available in different sizes, and different equipment sizes can be selected according to the size of the material itself.


功能特点

Functions and special feature

◇  电动式震动刀枪头,力量强劲,震动频率高,每分钟可达25000次。

Electric shock and head, strength, vibration frequency is high, up to 25000 times per minute.

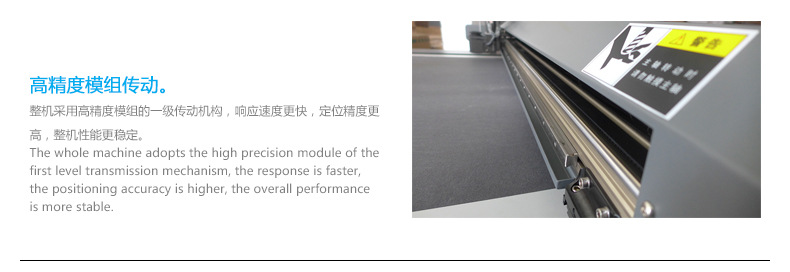

◇  切割机传动系统采用进口齿轮、齿条,切割精度完全达到往返原点零误差。

Cutting machine transmission system adopts imported gear, rack, cutting precision to achieve zero error.


◇  采用日本三菱伺服电机,可由电脑随意控制振动刀和压轮的下刀深度。

Using Servo-motor from Mitsubishi, With computerized control.

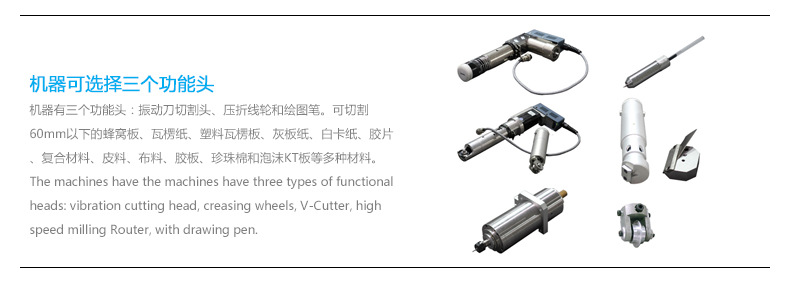

◇  配置振动刀、拖刀,笔画工具以及可选配置半刀,铣刀,开槽刀,圆刀、压痕刀等多种刀具,可实现写字画线、虚线裁切、半断裁切、全断裁切、铣刀裁切、多种材料V-CUT开槽、开铣槽、大小压轮压痕、硬质材料刮痕等实用功能。

The configuration of vibration knife, drag knife strokes, tools and optional half knife, cutter, slotted knife, knife, cutter, indentation knife and other tools, can achieve the office of line drawing, cutting, cutting, dotted half cut off all the cutting and milling cutter cutting, various materials, V-CUT slot milling, pressing wheel, indentation size the utility function and so on scratch hard materials.


◇  全自动摄像定位功能:自动实现印刷材料的定位切割,无需手动定位即可切割出外形轮廓。

Fully automatic camera positioning function: automatic positioning and cutting of printed materials, without manual positioning can be cut out the outline.


◇  采用先进成熟的滚动式台面设计,平台宽幅可订制大小,理论裁切长度无限制,采用真空吸风设计,超劲风、强吸力(小样片吸附不再困难)。

The type of rolling table design advanced, platform width can be customized size, no limit theory of cutting length, by vacuum suction design, super wind, strong suction (sample sheet is no longer difficult).


◇  采用完全自主研发的上位机控制系统,即学即会的人性化操控界面,支持远程教学,远程维护,远程升级,让客户使用更省心。

The completely independent research and development of computer control system, namely the humanized operation interface, support for remote teaching, remote maintenance, remote upgrade, let the customer with more peace of mind.


◇  可连接任意CAD软件,广泛应用于广告印刷行业、制鞋行业、服饰行业、复合材料、箱包行业、汽车行业、电子行业、装饰行业、家具等行业之绘图与切割。

Any CAD software can be connected. It is widely used for plotting and cutting for the industries and sectors like garment, shoe making, cases, handbags, laser cutter molds plotting, lighting fixtures, advertising gifts, self-adhesive and color box packing.


◇  可选装料架及自动送料装置。

Optional charging rack and automatic feeding device.
